Wooden Horn Series

M112-III

1×12 inch Horn 2-Way

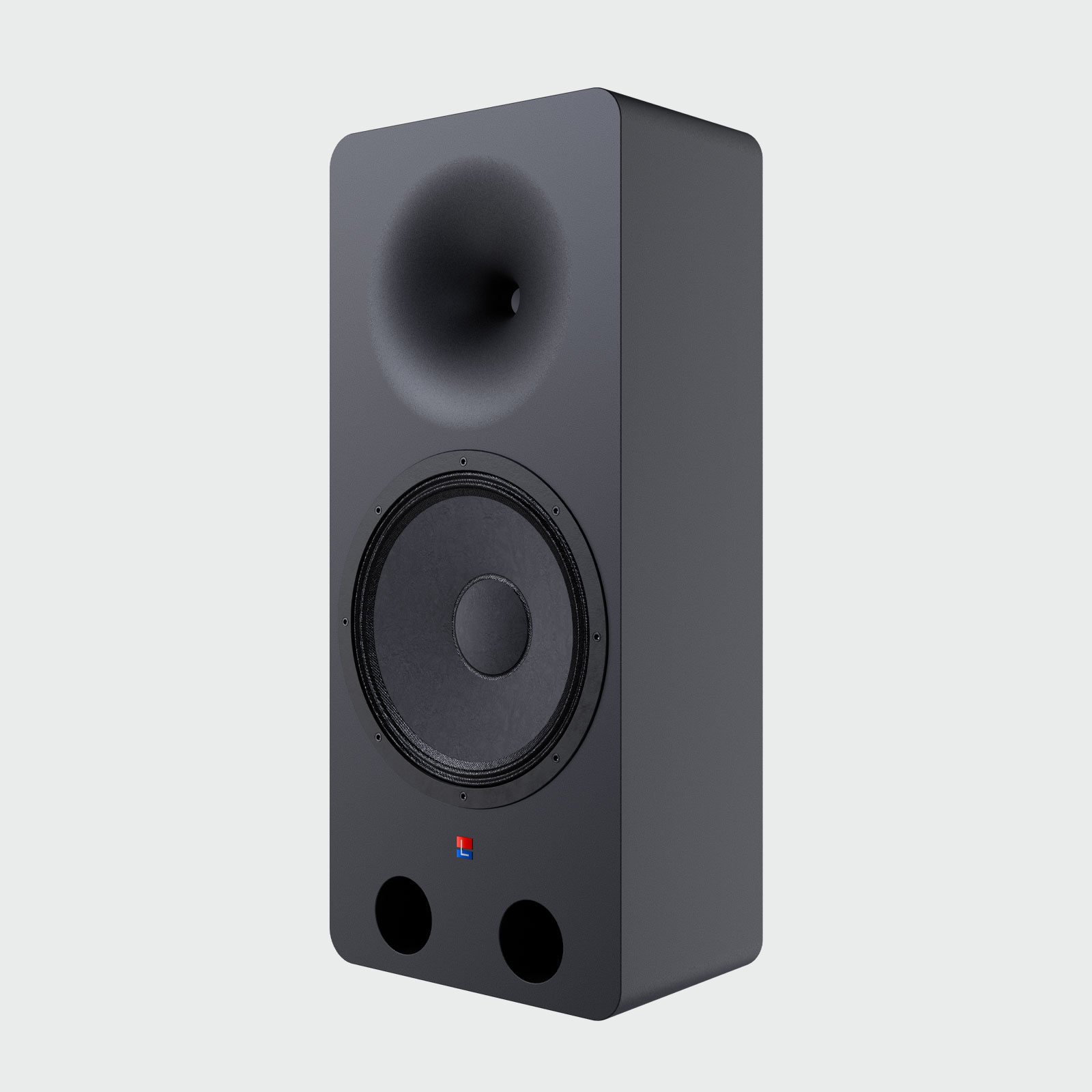

The M12-III represents my latest achievement in the large horn loudspeaker category. This system provides a live performance feel without compromising overall smoothness and clarity.

As a versatile external home theater system, the M12-III meets the needs of most households. Its ultra-high sensitivity makes it very easy to drive, and distortion is kept within controllable limits.  The 3-inch voice coil delivers a continuous 200W output power and is typically paired with the S15U or higher-end subwoofers, although more advanced subwoofers can also be used.

Speaker Specifications

Speaker Type

12-inch Horn Two-way

Horn Diameter

245 mm (MDF)

Type

Wall-mounted and floor-standing

Driving Method

Passive

Woofer

12-inch

Tweeter

1.7-inch

Height

775 mm

Width

342 mm

Thickness

220 mm

Impedance

8 Ω

Frequency Response

63 Hz – 20 kHz

Rated Power

200 W

Peak Power

300 W

Tweeter Sensitivity

107 dB

Woofer Sensitivity

99 dB

Sound Pressure Level

Continuous 110dB, Maximum 121dB

Crossover Method

Active Crossover

Crossover Point

1450 Hz

Recommended Damping

≥400 (1000Hz)

Panel Material

MDF

Panel Color

Matte Black / Matte White

Recommended Matching

RAM Power Amplifier & NST Processor
