Wooden Horn Series
M08-III
1×8 inch Horn 2-Way

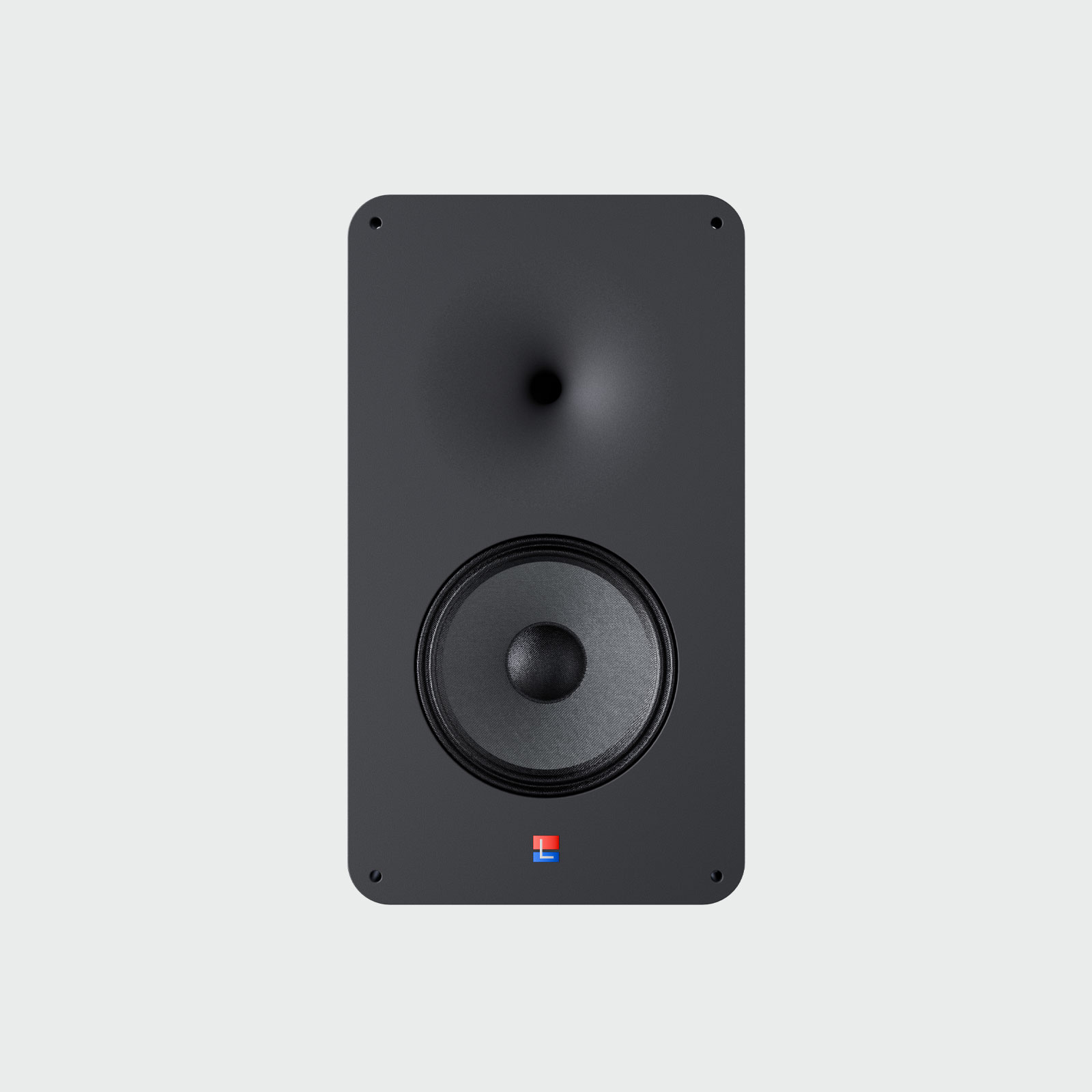

The M08-III speaker is an in-wall, flush-mounted speaker with an elegant and sophisticated design. It features smooth mid-range performance, with a high-frequency horn taking over at 1.6kHz. A first-order slope combined with perfect physical time alignment achieves perfect coherence in the crossover region. Off-axis behavior is textbook-perfect.
It utilizes a 44mm high-sensitivity compression tweeter and an 8-inch woofer with a power rating of up to 280W. The M08-III is typically paired with the S12U subwoofer, but can also be paired with higher-specification subwoofers. It can be used as a speaker in a home theater system or for background music and listening in small spaces.
Speaker Specifications
|
Speaker Type |
8-inch Horn Two-way |
|
Horn Diameter |
186 mm (MDF) |
|
Type |
In-wall/In-ceiling |
|
Driving Method |
Passive |
|
Woofer |
8-inch |
|
Tweeter |
1.7-inch |
|
Height |
500 mm |
|
Width |
280 mm |
|
Thickness |
170 mm |
|
Impedance |
8 Ω |
|
Frequency Response |
70 Hz – 20 kHz |
|
Rated Power |
280 W |
|
Peak Power |
500 W |
|
Tweeter Sensitivity |
107 dB |
|
Woofer Sensitivity |
97 dB |
|
Sound Pressure Level |
Continuous 113dB, Maximum 127dB |
|
Crossover Method |
Active Crossover |
|
Crossover Point |
1600 Hz |
|
Recommended Damping |
≥400 (1000Hz) |
|
Panel Material |
MDF |
|
Panel Color |
Matte Black / Matte White |
|
Recommended Matching |
RAM Power Amplifier & NST Processor |
