Coaxial speaker series

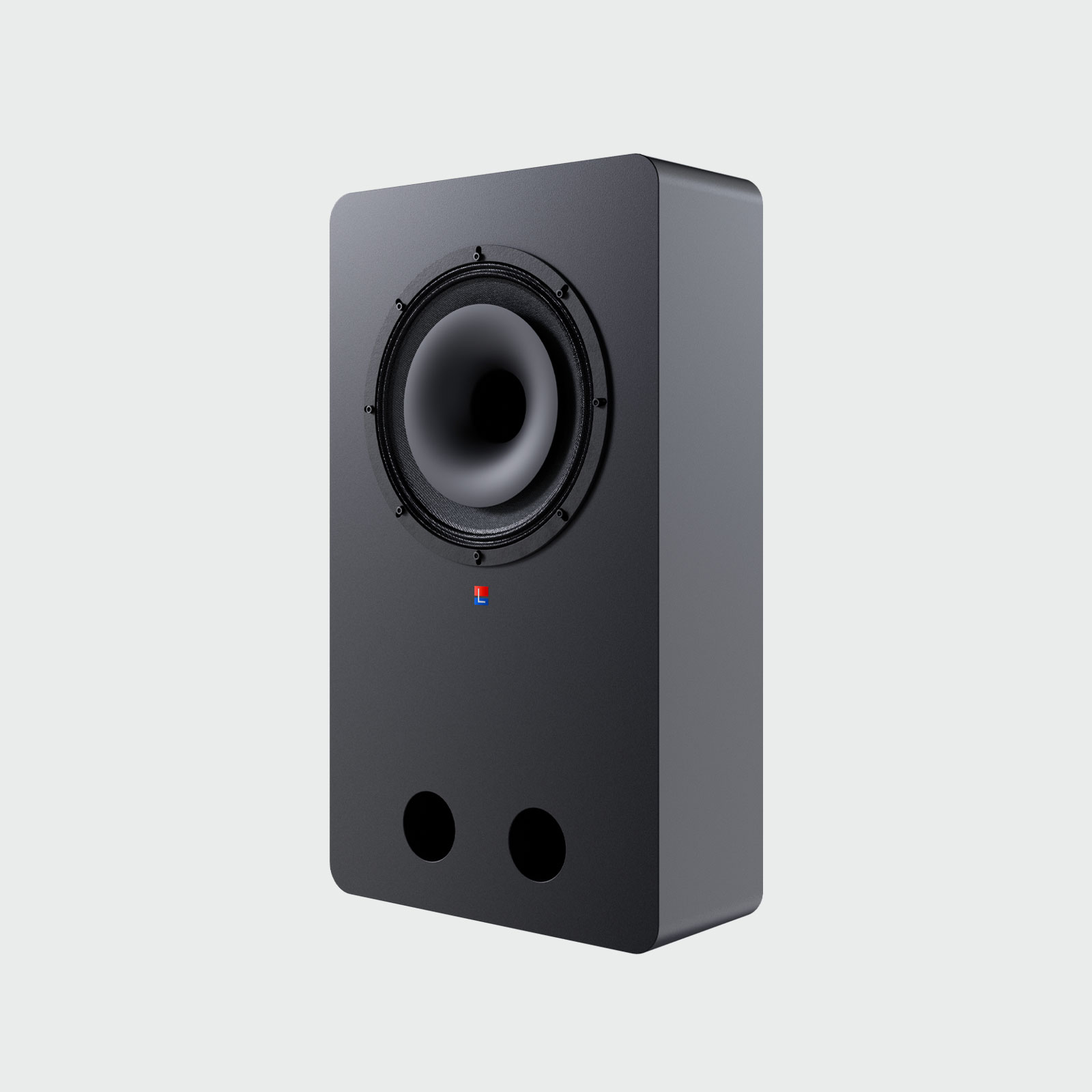

CO12-X

1×12 inch Coaxial 2-Way

The CO12-X continues the product line of its predecessors, and we have developed a larger coaxial solution with a high sensitivity of 94dB/w/m and 350W power handling to meet the needs of larger spaces.

The CO12-X speaker system is designed to provide a rich and warm sound for medium to large audiences. The 12-inch woofer, combined with our custom-designed 3-inch compression driver, delivers a warm, full-bodied sound with captivating emotional expression.

Speaker Specifications

Speaker Type 1 x 12-inch Coaxial Two-way
Type Wall-mounted and floor-standing
Driving Method Passive
Woofer 12 inches
Tweeter 3-inch
Height 735 mm
Width 425 mm
Thickness 160 mm
Impedance 8 Ω
Frequency Response 45 Hz – 18 kHz
Rated Power 350 W
Peak Power 700 W
Sensitivity 94 dB
Maximum SPL 127dB
Crossover Method Active Crossover
Crossover Frequency 1600 Hz
Recommended Damping ≥400 (1000Hz)
Panel Material MDF
Panel Color Matte Black / Matte White
