Coaxial speaker series

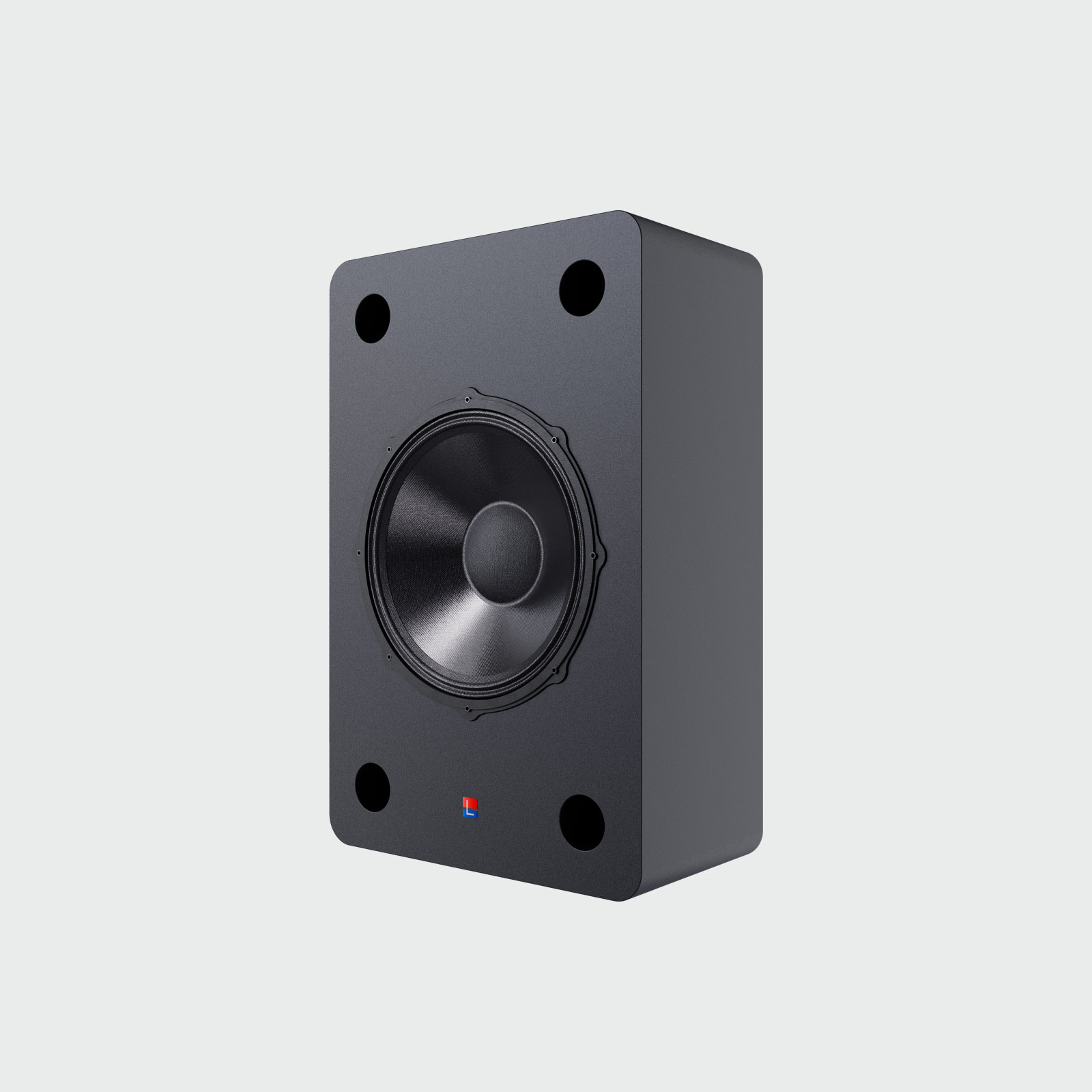

CO12-III

1×12 inch Coaxial 2-Way

The CO12-III is a flagship product in our coaxial speaker line. We collaborated with PHL AUDIO/BMS to develop this top-of-the-line coaxial speaker.

The CO12-III boasts a high sensitivity of 98.5dB/w/m and a power handling of 500W, defined by its precision, realism, and speed, and is specifically developed for cinema systems.

Product Sheet

Paramètres acoustiques

Speaker Type	1 x 12-inch Coaxial Two-way
Type	Wall-mounted and floor-standing
Driving Method	Passive
Woofer	12 inches
Tweeter	1.1-inch
Height	615 mm
Width	398 mm
Thickness	220 mm
Impedance	8 Ω
Frequency Response	50 Hz – 22 kHz
Rated Power	500 W
Peak Power	1000 W
Sensitivity	98.5 dB
Maximum SPL	133dB
Crossover Method	Active Crossover
Crossover Frequency	800 Hz
Recommended Damping	≥400 (1000Hz)
Panel Material	MDF
Panel Color	Matte Black / Matte White
