Coaxial speaker series

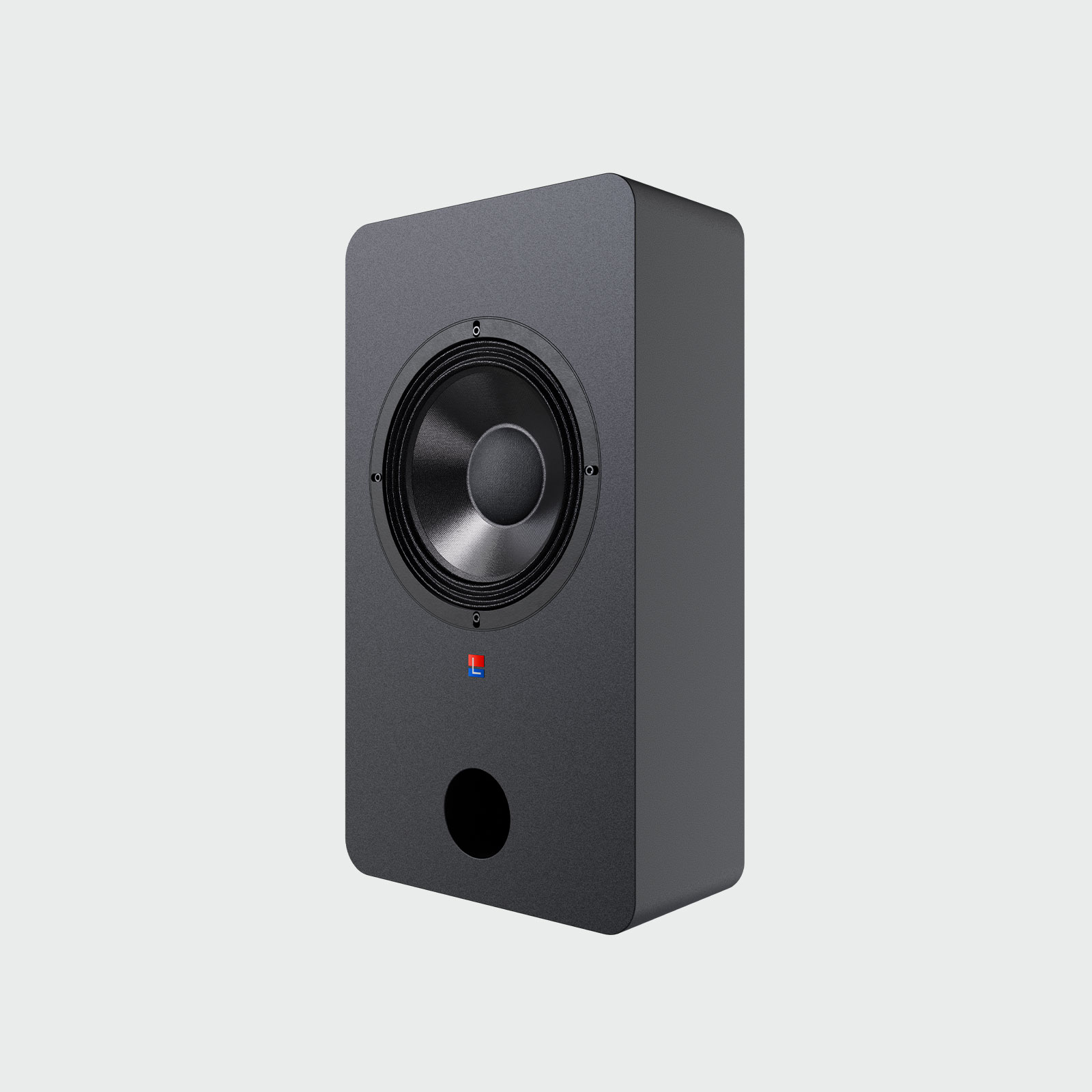

CO10-X

1×10 inch Coaxial 2-Way

The CO10-X continues the product line of its predecessors, featuring a larger coaxial solution with high sensitivity of 93.5dB/w/m and 250W power handling to meet the needs of larger spaces.

The CO10-X speaker system is designed to deliver a rich and warm sound for medium to large audiences. The 10-inch woofer, combined with our custom 1.3-inch compression driver, delivers clean and precise output. The sound is rich and engaging while maintaining appropriate dynamics.

Speaker Specifications

Speaker Type 1 x 10-inch Coaxial Two-way
Type Wall-mounted and floor-standing
Driving Method Passive
Woofer 10 inches
Tweeter 1.3-inch
Height 591 mm
Width 330 mm
Thickness 160 mm
Impedance 8 Ω
Frequency Response 65 Hz – 18 kHz
Rated Power 250 W
Peak Power 500 W
Sensitivity 93.5 dB
Maximum SPL 127dB
Crossover Method Active Crossover
Crossover Frequency 1000 Hz
Recommended Damping ≥400 (1000Hz)
Panel Material MDF
Panel Color Matte Black / Matte White
